ACE One-Piece Square Toilet, 12" Rough-in Dual-Flush

Product image 1
1 / 13
+8

ACE One-Piece Square Toilet, 12" Rough-in Dual-Flush

The DeerValley toilet possesses a rectangle seat and is easily installed and easy to keep clean. Elegance is added to any bathroom given its graceful design, while the square bowl offers improved comfort. The one-piece design makes it easy to install, and the soft-close toilet seat ensures that your family will not be awakened by the sound of the toilet lid closing. A fully skirted is both easy to clean and visually appealing, to be extremely resistant to scratches and stains.

Features

  • The rectangle bowl offers a wide seating area.
  • With a self-cleaning glaze, this one-piece toilet is not easy to leave stains and has a super antibacterial effect.
  • Concealed trap way design avoids the accumulation of dust and dirt in curved pipes which is more hygienic and easier to clean.
  • The dual-flush feature is ideal for water conservation.
  • This one-piece toilet is friendly-designed and easy to maintain.
  • Professional after-sale service and a one-year warranty.

Certifications

cUPC: Uniquely blend safety, hygiene, quality, and performance.

EPA: Seamlessly blend comfort with environmental responsibility, excelling in performance.
CEC: Certified user experience, energy efficiency, and environmental preservation.
DOE：Strictly blend energy efficiency, regulatory compliance, conservation, and performance.

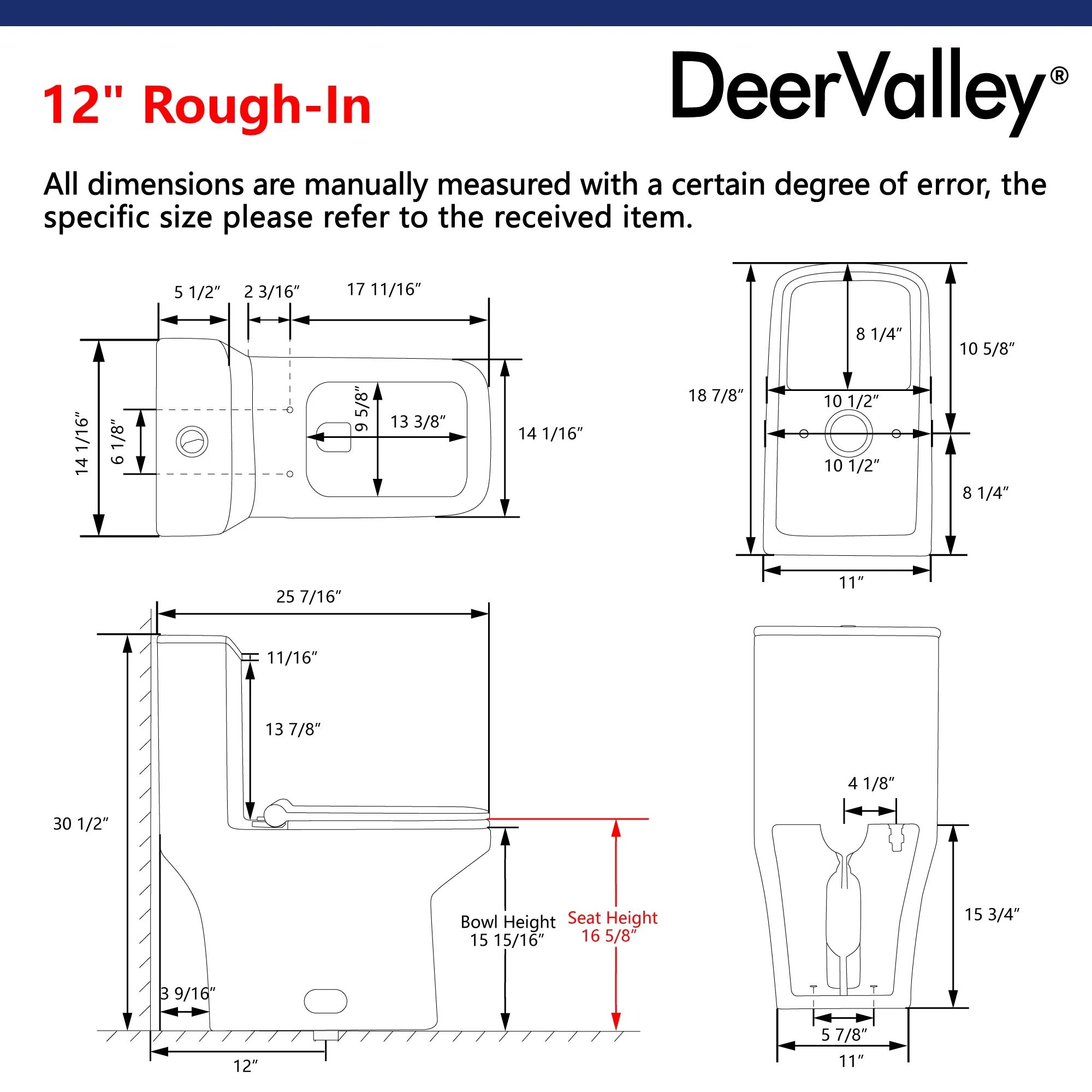

Weights & Dimensions

Overall: 25.79"L X 14.06"W X 30.51"H
Rough In Size: 12"
Toilet Seat Height - Top to Bottom: 16.61"
Bowl Height - Top to Bottom: 15.94"
Tank: 13.86"H X 13.98"L X 5.39" W
Tank Lid: 0.67"H X 14.06"L X 5.51" W
Bolts Spread Distance: 6.1"
Distance from the Seat Installation Hole to the Tank: 2.17"
Distance from the Back of the Toilet to the Wall: 3.54"
Toilet Installation Hole Distance: 5.91"
Height from the Bottom of the Water Tank to the Ground: 15.75"
Distance Between the Center of Adapter and the Center of Trapway: 4.13"
Trapway Diameter(Inside): 2.2"
Toilet Seat: 2.17/0.98 Back/Front" H X 14.17"W X 17.72"L
Toilet Seat Inside Ring: 8.46"W X 11.81"L
Bowl: 13.39"L X 9.65" W X 15.94"H
Toilet Base Dimension: 18.9"L X 11.02" W
Overall Product Weight: 123 lb.
Flush Volume: 1.1/1.6 GPF

What is included in the package?

  • Toilet seat, wax ring kit, bolts.

Compatible?Accessories

  • Waxring: DV-F0071P11
  • Side Bolt Cover: DV-F0071P21
  • Flush Button: DV-F0071V31
  • Fill Valve: DV-F0071V01
  • Toilet Seat: DV-F0071S11
  • Toilet Seat Quick Release Bracket: DV-F0071S01
  • Tank Lid: DV-F0071T11

Toilet Seat Bidet:

DeerValley's Toilet Seat Bidet offers convenience, eco-friendliness, and hygiene with its dedicated feminine wash, self-cleaning, electricity-free operation, and universal toilet compatibility.

    Installation Manual:

    DeerValley Bath always focuses on the development and production of bathroom products. We have superior factories to develop our high-quality products, a perfect after-sales service system, and are committed to providing excellent fashionable designs. We've been growing...

    The DeerValley toilet possesses a rectangle seat and is easily installed and easy to keep clean. Elegance is added to any bathroom given its graceful design, while the square bowl offers improved comfort. The one-piece design makes it easy to install, and the soft-close toilet seat ensures that your family will not be awakened by the sound of the toilet lid closing. A fully skirted is both easy to clean and visually appealing, to be extremely resistant to scratches and stains.

    Features

    • The rectangle bowl offers a wide seating area.
    • With a self-cleaning glaze, this one-piece toilet is not easy to leave stains and has a super antibacterial effect.
    • Concealed trap way design avoids the accumulation of dust and dirt in curved pipes which is more hygienic and easier to clean.
    • The dual-flush feature is ideal for water conservation.
    • This one-piece toilet is friendly-designed and easy to maintain.
    • Professional after-sale service and a one-year warranty.

    Certifications

    cUPC: Uniquely blend safety, hygiene, quality, and performance.

    EPA: Seamlessly blend comfort with environmental responsibility, excelling in performance.
    CEC: Certified user experience, energy efficiency, and environmental preservation.
    DOE：Strictly blend energy efficiency, regulatory compliance, conservation, and performance.

    Weights & Dimensions

    Overall: 25.79"L X 14.06"W X 30.51"H
    Rough In Size: 12"
    Toilet Seat Height - Top to Bottom: 16.61"
    Bowl Height - Top to Bottom: 15.94"
    Tank: 13.86"H X 13.98"L X 5.39" W
    Tank Lid: 0.67"H X 14.06"L X 5.51" W
    Bolts Spread Distance: 6.1"
    Distance from the Seat Installation Hole to the Tank: 2.17"
    Distance from the Back of the Toilet to the Wall: 3.54"
    Toilet Installation Hole Distance: 5.91"
    Height from the Bottom of the Water Tank to the Ground: 15.75"
    Distance Between the Center of Adapter and the Center of Trapway: 4.13"
    Trapway Diameter(Inside): 2.2"
    Toilet Seat: 2.17/0.98 Back/Front" H X 14.17"W X 17.72"L
    Toilet Seat Inside Ring: 8.46"W X 11.81"L
    Bowl: 13.39"L X 9.65" W X 15.94"H
    Toilet Base Dimension: 18.9"L X 11.02" W
    Overall Product Weight: 123 lb.
    Flush Volume: 1.1/1.6 GPF

    What is included in the package?

    • Toilet seat, wax ring kit, bolts.

    Compatible?Accessories

    • Waxring: DV-F0071P11
    • Side Bolt Cover: DV-F0071P21
    • Flush Button: DV-F0071V31
    • Fill Valve: DV-F0071V01
    • Toilet Seat: DV-F0071S11
    • Toilet Seat Quick Release Bracket: DV-F0071S01
    • Tank Lid: DV-F0071T11

    Toilet Seat Bidet:

    DeerValley's Toilet Seat Bidet offers convenience, eco-friendliness, and hygiene with its dedicated feminine wash, self-cleaning, electricity-free operation, and universal toilet compatibility.

      Installation Manual:

      DeerValley Bath always focuses on the development and production of bathroom products. We have superior factories to develop our high-quality products, a perfect after-sales service system, and are committed to providing excellent fashionable designs. We've been growing...

      $82.40

      Original: $274.67

      -70%
      ACE One-Piece Square Toilet, 12" Rough-in Dual-Flush—

      $274.67

      $82.40
